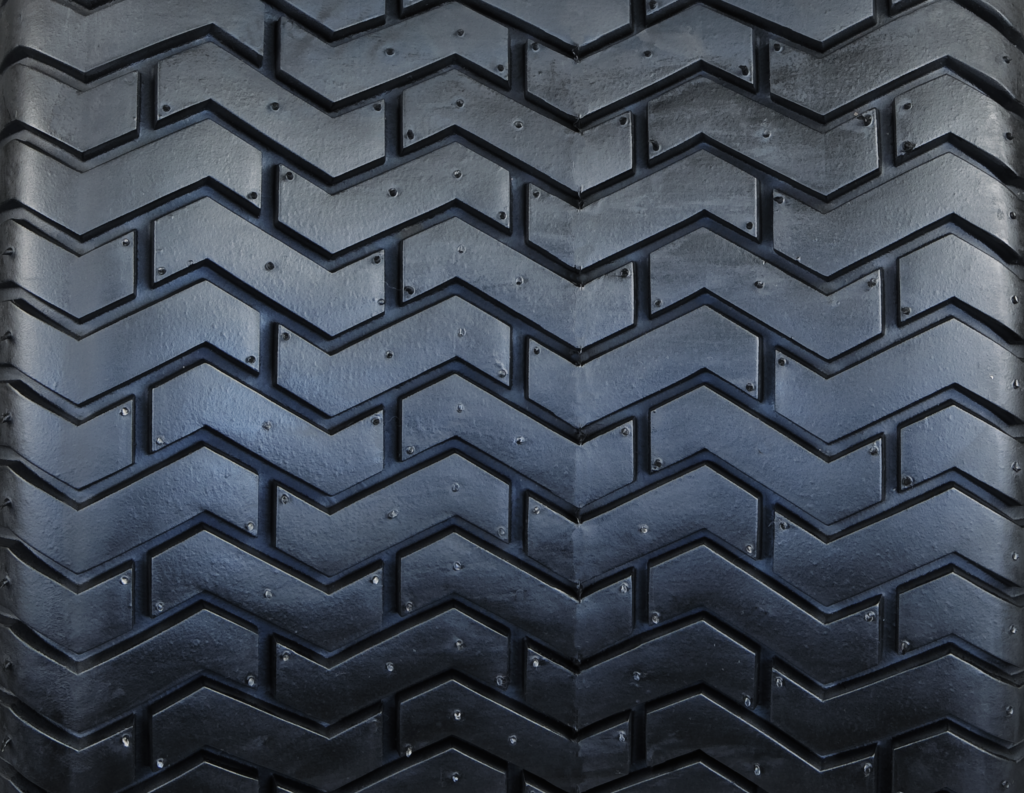

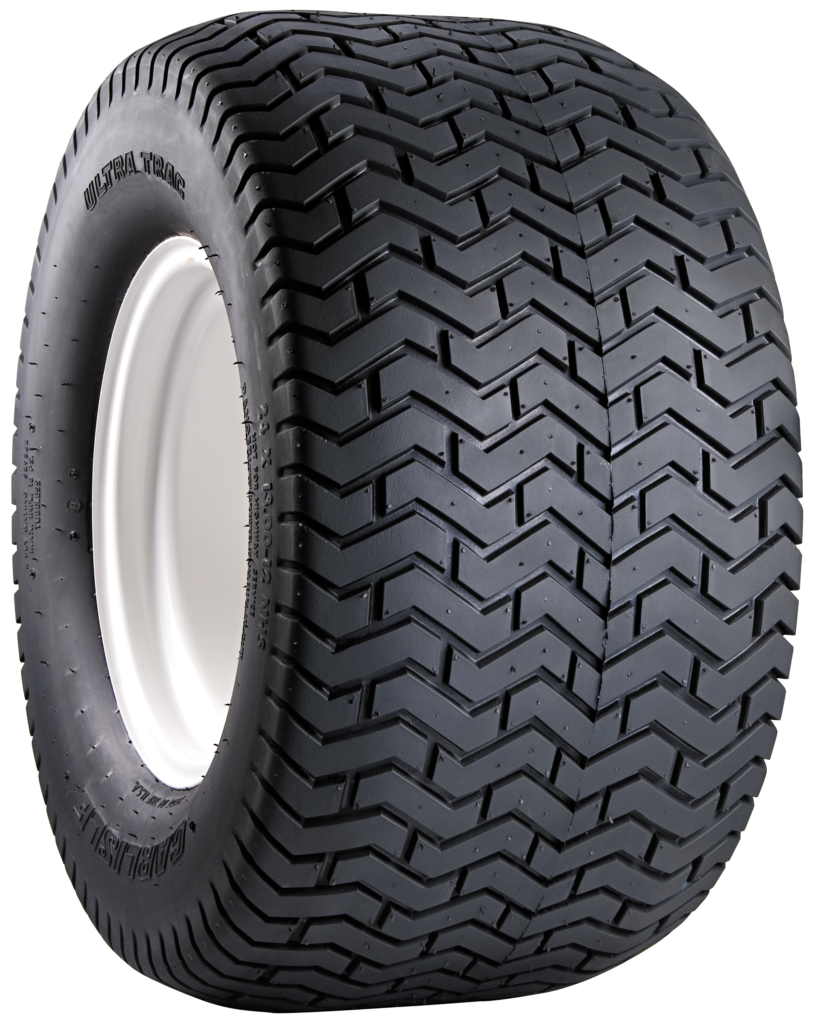

The Carlisle Ultra Trac tire is the ideal choice for specialized applications that prioritize high flotation and turf preservation. With its wide, flat footprint, reduced void in the tread, low ground pressure, good traction, and even pressure distribution, this tire delivers exceptional turf protection and performance. Whether you’re maintaining golf courses or engaging in grounds maintenance, the Carlisle Ultra Trac tire ensures optimal turf preservation and reliable operation.
Product Highlights:
| SKU | Size | Ply | Mounted diameter (in) | Mounted width (in) | Rim Width (in) | Rated load (lb) | Rated Speed | PSI | Weight (lb) | Additional Information |
|---|---|---|---|---|---|---|---|---|---|---|
| 529368 | 24x13.00-12 | 4 | 23 | 12.9 | 10.5 | 1760* | 10 | 18 | 26.7 | |
| 529387 | 24x13.00-12 | 6 | 23.4 | 12.9 | 10.5 | 2270 | 12.5 | 28 | 28 | |
| 529386 | 26.5x14.00-12 | 4 | 26.5 | 14.4 | 10.5 | 2150 | 12.5 | 18 | 33.1 | |
| 5.29E+09 | 29x14.00-15 | 6 | 29 | 14.4 | 12 | 1710** | 30 | 30 | 47.3 |
| SKU | Size | Ply | Mounted diameter (mm) | Mounted width (mm) | Rim width (mm) | Rated load (kg) | Rated speed | PSI | Weight (kg) | Additional Information |
|---|---|---|---|---|---|---|---|---|---|---|
| 529368 | 24x13.00-12 | 4 | 583.4 | 328.7 | 266.7 | 798.3 | 16.1 | 18 | 12.1 | |
| 529387 | 24x13.00-12 | 6 | 593.3 | 326.9 | 266.7 | 1029.7 | 20.1 | 28 | 12.7 | |
| 529386 | 26.5x14.00-12 | 4 | 673.1 | 365.8 | 266.7 | 975.2 | 20.1 | 18 | 15 | |
| 5.29E+09 | 29x14.00-15 | 6 | 736.6 | 365.8 | 304.8 | 775.6 | 48.3 | 30 | 21.5 |
* Max load @ 10 MPH
** Max load @ 30 MPH
