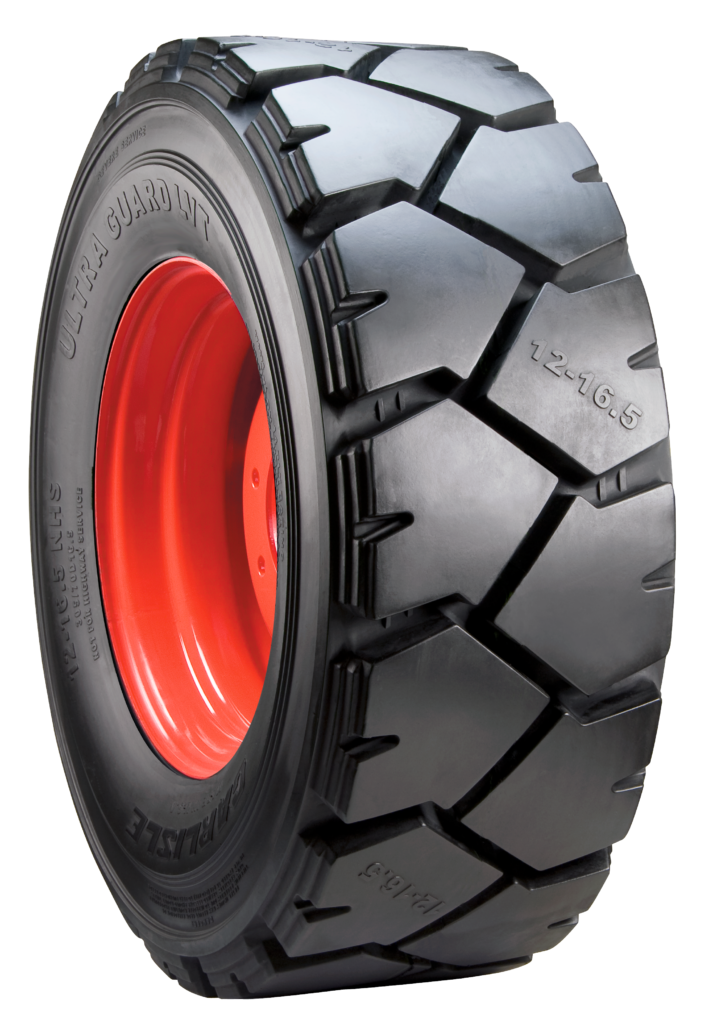

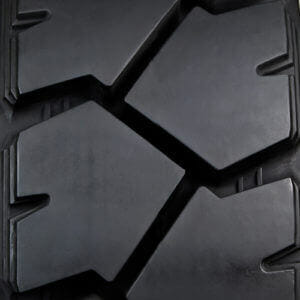

The Ultra Guard LVT tire is used on hard surface severe-service skid steers. It has a low tread void for maximum net ground contact, massive footprint & extra premium chip/chunk resistant tread rubber. The Ultra Guard LVT tire is essential on site surfaces such as demolition, rocks, gravel and concrete. Made in the USA.
Product highlights:
| SKU | Size | Ply | Mounted width (in) | Mounted diameter (in) | Rim Width (in) | Rated load (lb) | Rolling Circumference (in) | PSI | Tube Type | Weight (lb) | Additional Information |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 570075 | 10-16.5 | 10 | 10.9 | 31.4 | 8.3 | 4710 | 92.4 | 75 | Tubeless | 90 | |
| 570076 | 12-16.5 | 14 | 13.1 | 32.9 | 9.8 | 6780 | 99 | 90 | Tubeless | 112 | |
| 570077 | 14-17.5 | 14 | 13.8 | 36.3 | 10.5 | 8540 | 109 | 80 | Tubeless | 132 |
| SKU | Size | Ply | Mounted width (mm) | Mounted diameter (mm) | Rim width (mm) | Rated load (kg) | Rolling Circumference (mm) | PSI | Tube Type | Weight (kg) | Additional Information |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 570075 | 10-16.5 | 10 | 276.9 | 797.6 | 209.6 | 2136.4 | 2347 | 75 | Tubeless | 41 | |
| 570076 | 12-16.5 | 14 | 332.7 | 835.7 | 247.7 | 3075.4 | 2514.6 | 90 | Tubeless | 51 | |
| 570077 | 14-17.5 | 14 | 349.3 | 920.8 | 266.7 | 3873.7 | 2768.6 | 80 | Tubeless | 60 |
