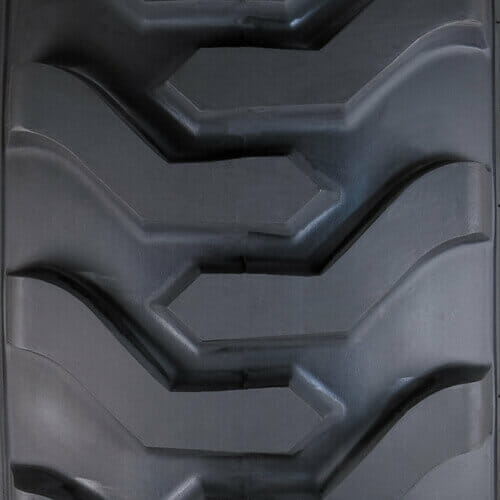

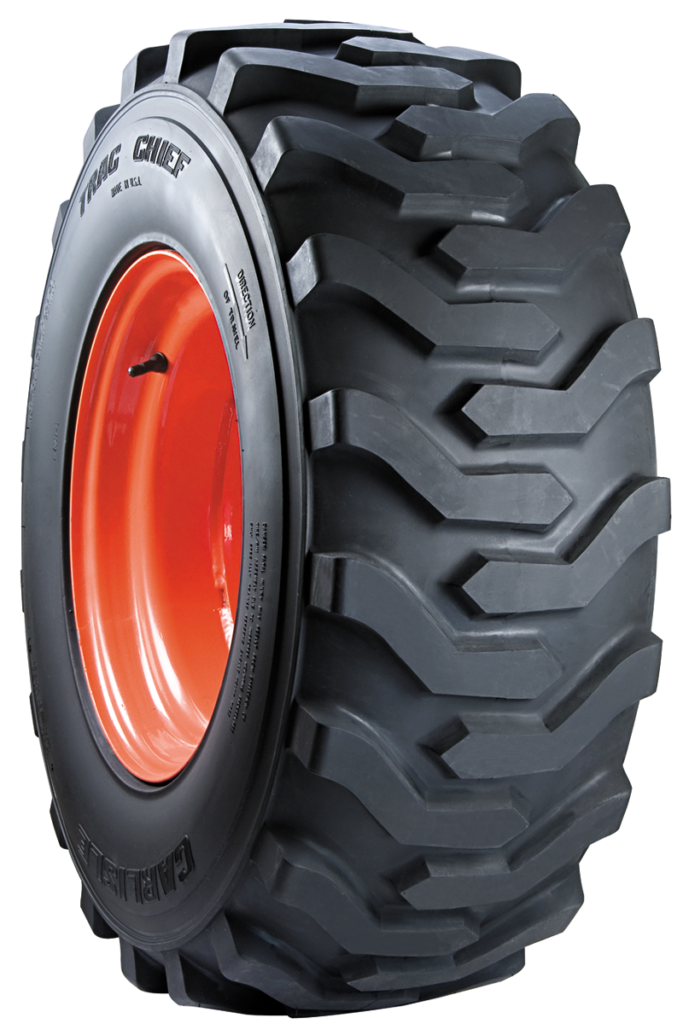

Great for general duty skid steer and compact tractor applications, the Trac Chief and Trac Chief XT tires are engineered with a flat profile for increased stability, rugged tread compounds and a built-in rim guard to protect its bead area from hazards and debris. Made in the USA.
Product highlights:
SKU | Size | Ply | Load Index | PSI | Rated load (lb) | Approved Rim | Mounted width (in) | Mounted diameter (in) | Tube Type | Static Load Radius | Rolling Circumference (in) | Tread Depth | Weight (lb) | Additional Information |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
51S3C2 | 5.70-12 | 4 | 93A2 | 60 | 1430 | 12 | 5.5 | 22.4 | Tubeless | 10.3 | 68.9 | 17 /32 | 15.9 | |
560483 | 20x8.00-10 | 4 | 77A3 | 24 | 910 | 10 | 8.2 | 19.3 | Tubeless | 8.8 | 57.1 | 16 /32 | 17.6 | |
51S388 | 23x8.50-14 | 4 | 94A2 | 35 | 1480 | 14 | 8 | 23 | Tubeless | 10.4 | 69.2 | 17 /32 | 22.6 | |
560484 | 27x12.50-15 | 4 | N/A | 20 | 2030 | 15 | 12 | 28 | Tubeless | 12.8 | 83.1 | 19 /32 | 41 | |
570139 | 28x8.50-15 | 6 | 102A2 | 45 | 1870 | 15 | 8.8 | 28.3 | Tubeless | 12.5 | 82.1 | 16 /32 | 31.9 |
SKU | Size | Ply | Load Index | PSI | Rated load (kg) | Approved Rim | Mounted width (mm) | Mounted diameter (mm) | Tube Type | Static Load Radius | Rolling Circumference (mm) | Tread Depth | Weight (kg) | Additional Information |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
51S3C2 | 5.70-12 | 4 | 60 | 648.6 | 304.8 | 139.7 | 569 | Tubeless | 1750.1 | 13.5 | 7.2 | |||
560483 | 20x8.00-10 | 4 | 24 | 412.8 | 254 | 208.3 | 490.2 | Tubeless | 1451.4 | 12.7 | 8 | |||
51S388 | 23x8.50-14 | 4 | 35 | 671.3 | 355.6 | 203.2 | 584.2 | Tubeless | 1757.7 | 13.5 | 10.3 | |||
560484 | 27x12.50-15 | 4 | 20 | 920.8 | 381 | 304.8 | 711.2 | Tubeless | 2110.7 | 15.1 | 19 | |||
570139 | 28x8.50-15 | 6 | 45 | 848.2 | 381 | 222.3 | 717.6 | Tubeless | 2085.3 | 12.7 | 14.5 |
These tires are not for highway use.
†Indicates mounted diameter and mounted width
*NOTE: Tire sizes shown with the asterisk are Trac Chief XT (XT) tread pattern, used for heavier loads.
