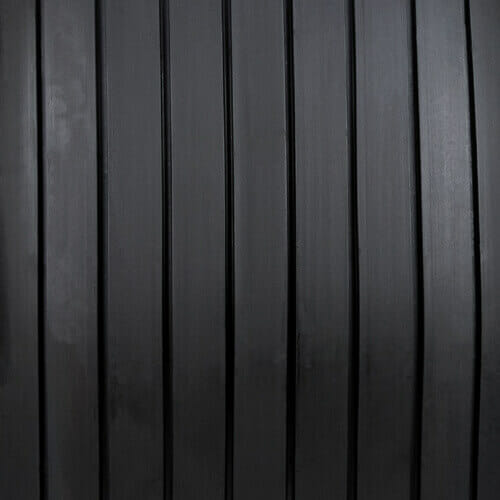

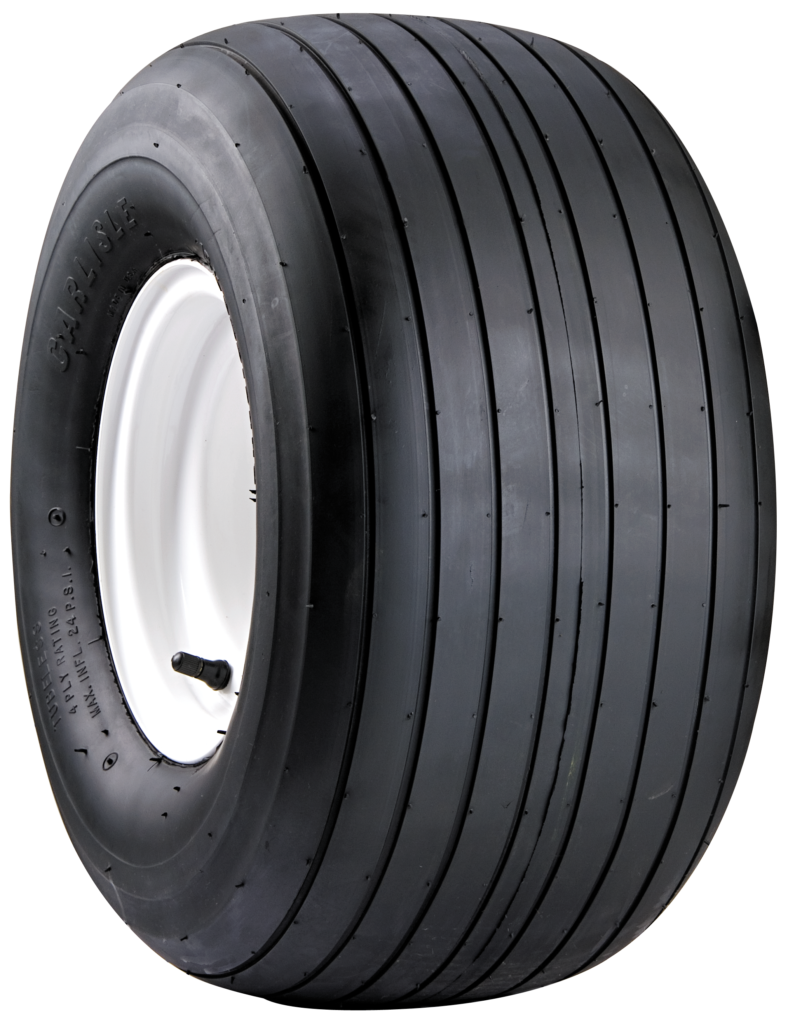

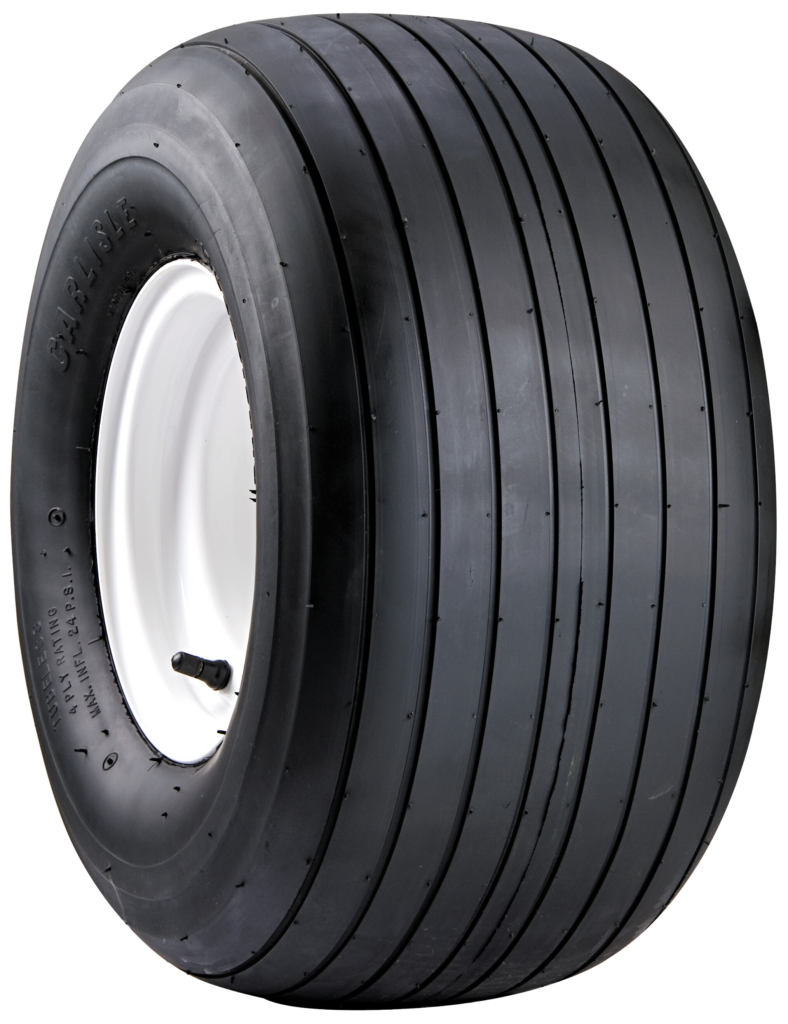

The Straight Rib tire is designed with tread grooves to channel moisture away from the contact patch and provides a slight lateral traction which can be helpful when traversing mild inclines.
Product Highlights:
| Part Number Sort Order | SKU | Size | Ply | Mounted Diameter (INCH) | Mounted Width (INCH) | Rim Width (INCH) | Rated Load (POUND) | PSI | Weight (POUND) | Additional Information |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 5110921 | 11x4.00-4 | 4 | 10.4 | 4.1 | 2.5 | 330 | 46 | 4 | |
| 1 | 5180111 | 11x4.00-5 | 4 | 11.1 | 4.2 | 3 | 330 | 46 | 3.3 | |
| 2 | 5180211 | 13x5.00-6 | 4 | 12.8 | 4.7 | 3.5 | 440 | 40 | 4.1 | |
| 4 | 5180311 | 15x6.00-6 | 4 | 14.4 | 6.1 | 4.5 | 565 | 30 | 5.9 | |
| 6 | 518081 | 18x9.50-8 | 4 | 17.7 | 9.3 | 7 | 1020 | 24 | 9.8 | |
| 5 | 5180961 | 16x6.50-8 | 4 | 16 | 6.5 | 5.4 | 615 | 28 | 6.7 | |
| 7 | 5181161 | 20x10.00-10 | 4 | 20 | 8.8 | 6 | 1170 | 22 | 14.1 | |
| 3 | 5181861 | 13x6.50-6 | 4 | 13 | 5.9 | 4.5 | 480 | 28 | 5 | |
| 9 | 518711 | 26x12.00-12 | 4 | 25 | 11.7 | 10.5 | 1760 | 20 | 20.7 |
| Part Number Sort Order | SKU | Size | Ply | Mounted Load Diameter (MILLIMETER) | Mounted Width (MILLIMETER) | Rim Width (MILLIMETER) | Rated Load (KILOGRAM) | PSI | Weight (KILOGRAM) | Additional Information |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 5110921 | 11x4.00-4 | 4 | 264.2 | 104.1 | 63.5 | 150 | 46 | 2 | |
| 1 | 5180111 | 11x4.00-5 | 4 | 280.9 | 106.7 | 76.2 | 150 | 46 | 1.5 | |
| 2 | 5180211 | 13x5.00-6 | 4 | 324.6 | 119.1 | 88.9 | 200 | 40 | 1.9 | |
| 4 | 5180311 | 15x6.00-6 | 4 | 366.8 | 156 | 114.3 | 256 | 30 | 2.7 | |
| 6 | 518081 | 18x9.50-8 | 4 | 448.3 | 235.7 | 177.8 | 463 | 24 | 4.5 | |
| 5 | 5180961 | 16x6.50-8 | 4 | 406.4 | 164.6 | 136.7 | 279 | 28 | 3 | |
| 7 | 5181161 | 20x10.00-10 | 4 | 508 | 222.3 | 152.4 | 531 | 22 | 6.4 | |
| 3 | 5181861 | 13x6.50-6 | 4 | 329.4 | 150.6 | 114.3 | 218 | 28 | 2.3 | |
| 9 | 518711 | 26x12.00-12 | 4 | 635.8 | 296.2 | 266.7 | 798 | 20 | 9.4 |
All Outdoor Power Equipment are Non-Highway Service (NHS) Tires.
† Indicates mounted diameter and mounted width
*NOTE: The 20x10.0-10.0 is called a Turf Glide tire.
