Highway Supreme Trailer Wheel

Boat | Cargo | Horse and Livestock | Recreational Vehicles (RV) | Specialty Trailer

Home Products High-Speed Trailer Highway Supreme Trailer Wheel

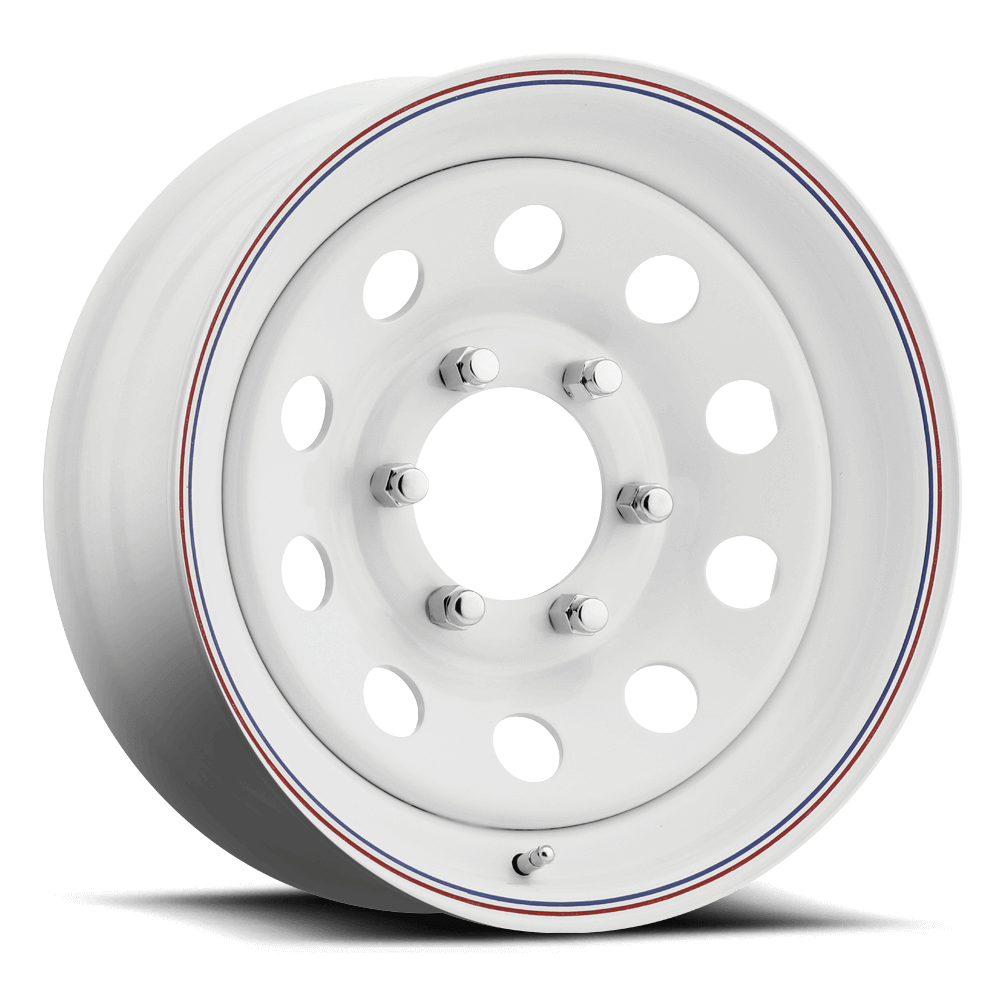

Carlisle Highway Supreme Trailer Wheel - White with Red and Blue Stripes

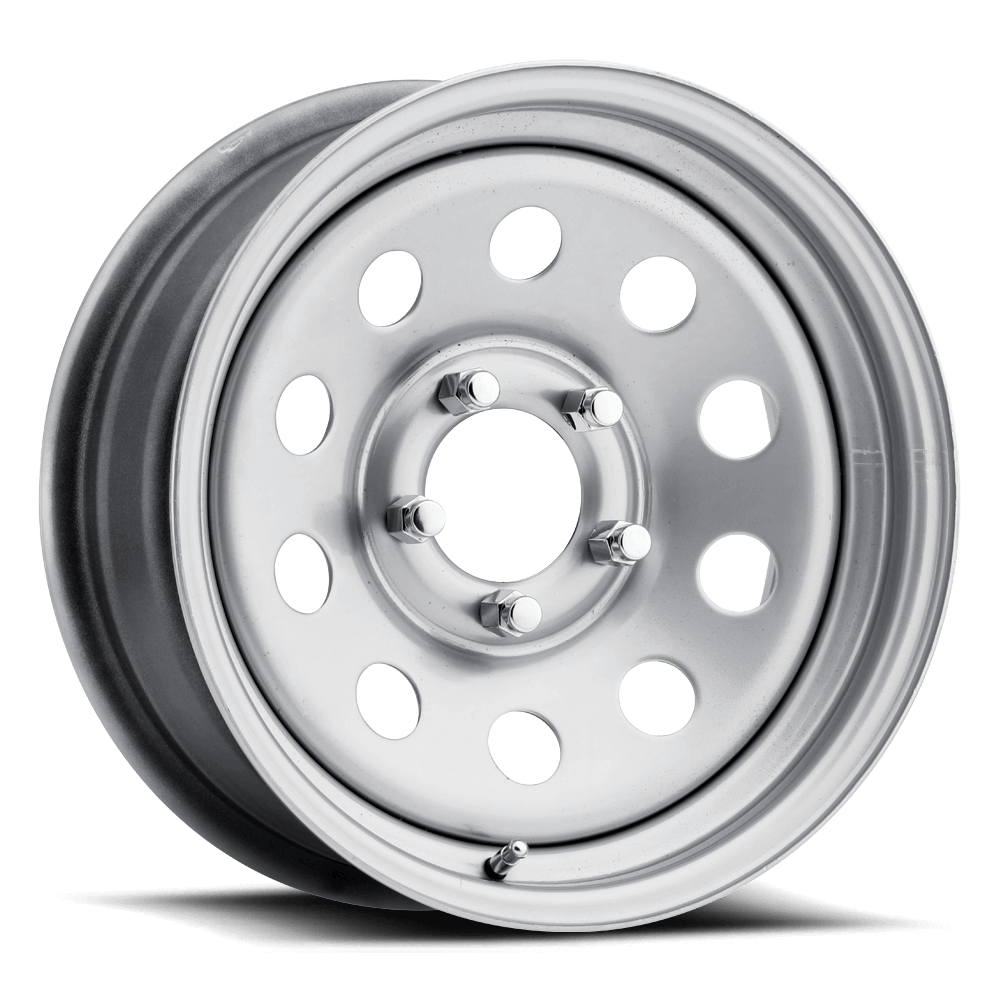

Carlisle Highway Supreme Trailer Wheel - Silver

Highway Supreme Trailer Wheel

Best used for

Boat

Cargo

Horse and Livestock

Recreational Vehicles (RV)

Specialty Trailer

Boat Trailers, Cargo Trailers, Horse and Stock Trailers, RV-Towable Utility and Specialty Trailers

Technical Specifications

SKU	Size	Bolt Pattern	Offset	Rear Spacing (in)	Center Bore (in)	Rated load (lb)	Finish	Weight (lb)
1222432284B	12x4	5x4.5		2.3750	2.8430	1520	White w/ Red and Blue Strips	10.4
1222432564B	12x4	5x4.5		2.3750	2.8430	1520	White w/ Red and Blue Strips	10.4
1221131532B	12x4	5x4.5		2.3750	2.8000	1220	White w/ Red and Blue Strips	11
1221442564B	12x4	5x4.5		2.3750	2.8000	1220	White w/ Red and Blue Strips	11
1222433564B	12x4	4x4		2.3750	2.8430	1520	White w/ Red and Blue Strips	26.9
1322686400B	13x4	5x4.5		2.8050	3.3070	1660	White w/ Red and Blue Strips	11.2
1322434284B	13x4.5	5x4.5		2.7500	3.3070	1660	White w/ Red and Blue Strips	15
1322434564B	13x4.5	5x4.5		2.7500	3.3070	1660	White w/ Red and Blue Strips	15
1421156532B	14x6	5x4.5		3.5000	3.3000	1870	White w/ Red and Blue Strips	20
1421156564B	14x6	5x4.5		3.5000	3.3000	1870	White w/ Red and Blue Strips	20
1422676284B	14x6	5x4.5		3.5530	3.3070	2040	Silver	15.9
1422676564B	14x6	5x4.5		3.5530	3.3070	2040	White w/ Red and Blue Strips	15.9
1418221023	14x6	5x4.5		3.5000	3.3000	1480	White w/ Red and Blue Strips	19
1519898564B	15x5	5x4.5		2.8750	3.3000	1820	White w/ Red and Blue Strips	20
1522665564B	15x5	5x4.5		3.0510	3.1970	2150	White w/ Red and Blue Strips	17.5
1526257023	15x6	5x5.0	0.0000	3.5000	3.3000	3200		23
1518277023	15x6	5x4.5		3.5000	3.3000	2150	White w/ Red and Blue Strips	24
1518669564B	15x6	6x5.5		3.5000	4.2800	2850	White w/ Red and Blue Strips	23
1521124564B	15x6	6x5.5		3.5000	4.2800	2850	White w/ Red and Blue Strips	22
1521133532B	15x6	5x4.5		3.5000	3.3000	2150	White w/ Red and Blue Strips	22
1521133564B	15x6	5x4.5		3.5000	3.3000	2150	White w/ Red and Blue Strips	22
1522665284B	15x6	5x5		3.5530	3.3070	2150	Silver	17.5
1522666284B	15x6	6x5.5		3.5530	4.2910	3080	Silver	18.9
1522666564B	15x6	6x5.5		3.5530	4.2910	3080	White w/ Red and Blue Strips	18.9
1522667284B	15x6	5x4.5		3.5530	3.3070	2830	Silver	20.3
1522667564B	15x6	5x4.5		3.5530	3.3070	2830	White w/ Red and Blue Strips	20.3
1618330564B	16x6	8x6.5		3.5000	5.1500	4080	White w/ Red and Blue Strips	29
1626896284	16x6	8x6.5		4.0000	5.1500	4080	White w/ Red and Blue Strips	34
1622670284B	16x6	8x6.5		3.5530	4.9020	4480	Silver	30.3
1622670564B	16x6	8x6.5		3.5530	4.9020	4480	White w/ Red and Blue Strips	30.3
1622671284B	16x6	6x5.5		3.5530	4.2830	3750	Silver	26.9
1622671564B	16x6	6x5.5		3.5530	4.2830	3750	White w/ Red and Blue Strips	26.9
1621140532B	16x6	8x6.5		3.5000	5.1500	3960	White w/ Red and Blue Strips	32
1621157564B	16x6	6x5.5		3.5000	4.2800	3200	White w/ Red and Blue Strips	32
1626899400	16x6	8x6.5		3.5000	5.1500	4080	White w/ Red and Blue Strips	32
1627138564	16x7	8x6.5		4.0000	5.1500	3200	White w/ Red and Blue Strips	31
1627138564B	16x7	8x6.5		4.0000	5.1500	3200	White w/ Red and Blue Strips	31

SKU	Size	Bolt Pattern	Rear Spacing (mm)	Center Bore (mm)	Rated load (kg)	Finish	Weight (kg)
1222432284B	12x4	5x4.5	60.3250	72.2122	690	White w/ Red and Blue Strips	4.7
1222432564B	12x4	5x4.5	60.3250	72.2122	690	White w/ Red and Blue Strips	4.7
1221131532B	12x4	5x4.5			554	White w/ Red and Blue Strips	5
1221442564B	12x4	5x4.5			554	White w/ Red and Blue Strips	5
1222433564B	12x4	4x4	60.3250	72.2122	690	White w/ Red and Blue Strips	12.2
1322686400B	13x4	5x4.5	71.2470	83.9978	753.6	White w/ Red and Blue Strips	5.1
1322434284B	13x4.5	5x4.5	69.8500	83.9978	753.6	White w/ Red and Blue Strips	6.8
1322434564B	13x4.5	5x4.5	69.8500	83.9978	753.6	White w/ Red and Blue Strips	6.8
1421156532B	14x6	5x4.5			849	White w/ Red and Blue Strips	9
1421156564B	14x6	5x4.5			849	White w/ Red and Blue Strips	9
1422676284B	14x6	5x4.5	90.2462	83.9978	926.1	Silver	7.2
1422676564B	14x6	5x4.5	90.2462	83.9978	926.1	White w/ Red and Blue Strips	7.2
1418221023	14x6	5x4.5			672	White w/ Red and Blue Strips	9
1519898564B	15x5	5x4.5			826	White w/ Red and Blue Strips	9
1522665564B	15x5	5x4.5	77.4954	81.2038	976	White w/ Red and Blue Strips	7.9
1526257023	15x6	5x5.0					11
1518277023	15x6	5x4.5			976	White w/ Red and Blue Strips	11
1518669564B	15x6	6x5.5			1293	White w/ Red and Blue Strips	11
1521124564B	15x6	6x5.5			1293	White w/ Red and Blue Strips	10
1521133532B	15x6	5x4.5			976	White w/ Red and Blue Strips	10
1521133564B	15x6	5x4.5			976	White w/ Red and Blue Strips	10
1522665284B	15x6	5x5	90.2462	83.9978	976	Silver	7.9
1522666284B	15x6	6x5.5	90.2462	108.9914	1398.2	Silver	8.6
1522666564B	15x6	6x5.5	90.2462	108.9914	1398.2	White w/ Red and Blue Strips	8.6
1522667284B	15x6	5x4.5	90.2462	83.9978	1284.7	Silver	9.2
1522667564B	15x6	5x4.5	90.2462	83.9978	1284.7	White w/ Red and Blue Strips	9.2
1618330564B	16x6	8x6.5			1851	White w/ Red and Blue Strips	13
1626896284	16x6	8x6.5			1851	White w/ Red and Blue Strips	16
1622670284B	16x6	8x6.5	90.2462	124.5108	2033.7	Silver	13.8
1622670564B	16x6	8x6.5	90.2462	124.5108	2033.7	White w/ Red and Blue Strips	13.8
1622671284B	16x6	6x5.5	90.2462	108.7882	1702.3	Silver	12.2
1622671564B	16x6	6x5.5	90.2462	108.7882	1702.3	White w/ Red and Blue Strips	12.2
1621140532B	16x6	8x6.5			1796	White w/ Red and Blue Strips	15
1621157564B	16x6	6x5.5			1452	White w/ Red and Blue Strips	15
1626899400	16x6	8x6.5			1851	White w/ Red and Blue Strips	15
1627138564	16x7	8x6.5			1452	White w/ Red and Blue Strips	14
1627138564B	16x7	8x6.5			1452	White w/ Red and Blue Strips	14
