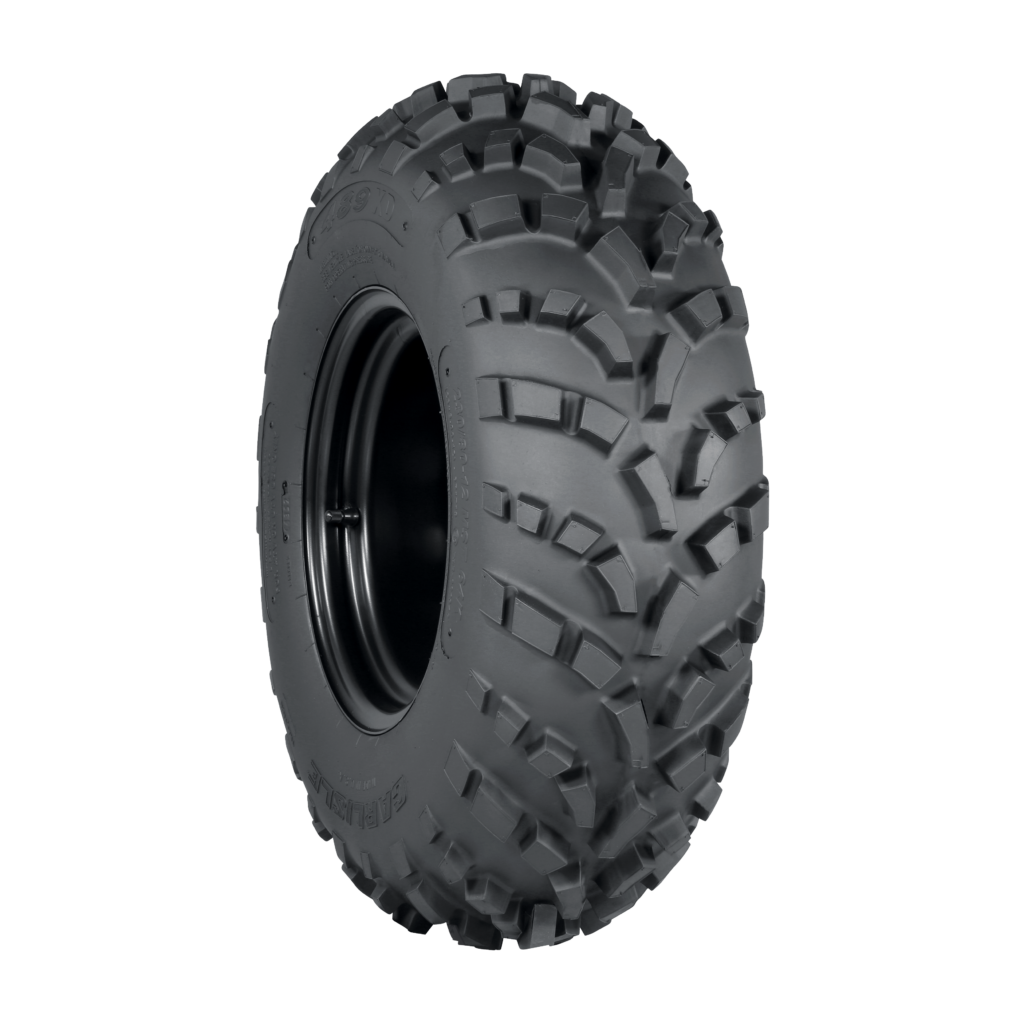

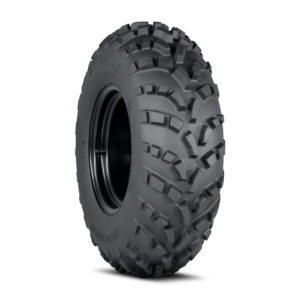

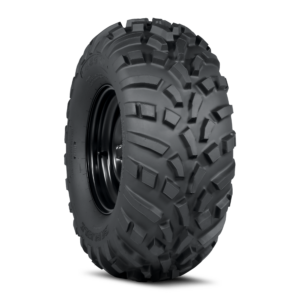

The 489 XD is designed to be aggressive yet maintain smooth control and able to handle soft to intermediate surfaces, including mud.
| SKU | Size | Ply | Mounted diameter (in) | Mounted width (in) | Rim Width (in) | Rated load (lb) | Rated Speed (lb) | PSI | Tread Depth | Weight (lb) | Additional Information |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6P1710 | 25x8.00-12 | 8 | 25.1 | 7.5 | 6.5 | 520 | 68 | 20 | 24 /32 | 19 | |
| 6P1711 | 25X11.00-12 | 8 | 25.8 | 10.5 | 8 | 695 | 68 | 20 | 24 /32 | 26 | |
| 6P1712 | 26x8.00-12 | 8 | 26.2 | 7.9 | 7 | 565 | 68 | 20 | 24 /32 | 20.8 | |
| 6P1713 | 26x9.00-12 | 8 | 26.2 | 9.4 | 7 | 615 | 68 | 20 | 24 /32 | 21.6 | |
| 6P1714 | 26x11.00-12 | 8 | 25.6 | 10.8 | 8 | 715 | 68 | 20 | 24 /32 | 27.8 | |
| 6P1715 | 27x9.00B12 | 8 | 27.3 | 9.1 | 8 | 660 | 68 | 20 | 24 /32 | 22.5 | |
| 6P1716 | 27x11.00B12 | 8 | 27.4 | 10.9 | 8 | 760 | 68 | 20 | 24 /32 | 29 | |
| 6P1989 | 27x9.00-14 | 8 | 27.5 | 8.5 | 7 | 910 | 50 | 20 | 24.9 | ||
| 6P1990 | 27x11.00-14 | 8 | 27.8 | 10.3 | 9 | 1095 | 50 | 20 | 25 /32 | 32.5 |
| SKU | Size | Ply | Mounted diameter (mm) | Mounted width (mm) | Rated load (kg) | Rated speed | PSI | Tread Depth | Weight (kg) | Additional Information |
|---|---|---|---|---|---|---|---|---|---|---|
| 6P1710 | 25x8.00-12 | 8 | 637.8 | 190.5 | 109.4 | 20 | 24 /32 | 8.6 | ||
| 6P1711 | 25X11.00-12 | 8 | 655.6 | 266.7 | 109.4 | 20 | 24 /32 | 11.8 | ||
| 6P1712 | 26x8.00-12 | 8 | 666.2 | 207 | 109.4 | 20 | 24 /32 | 9.5 | ||
| 6P1713 | 26x9.00-12 | 8 | 665.2 | 237.5 | 109.4 | 20 | 24 /32 | 9.8 | ||
| 6P1714 | 26x11.00-12 | 8 | 649.2 | 273.8 | 109.4 | 20 | 24 /32 | 12.6 | ||
| 6P1715 | 27x9.00B12 | 8 | 692.2 | 231.9 | 109.4 | 20 | 24 /32 | 10.2 | ||
| 6P1716 | 27x11.00B12 | 8 | 695.5 | 276.1 | 109.4 | 20 | 24 /32 | 13.1 | ||
| 6P1989 | 27x9.00-14 | 8 | Mounted diameter | 215.9 | 20 | 11.3 | ||||
| 6P1990 | 27x11.00-14 | 8 | 706.1 | 261.6 | 20 | 25 /32 | 14.7 |
