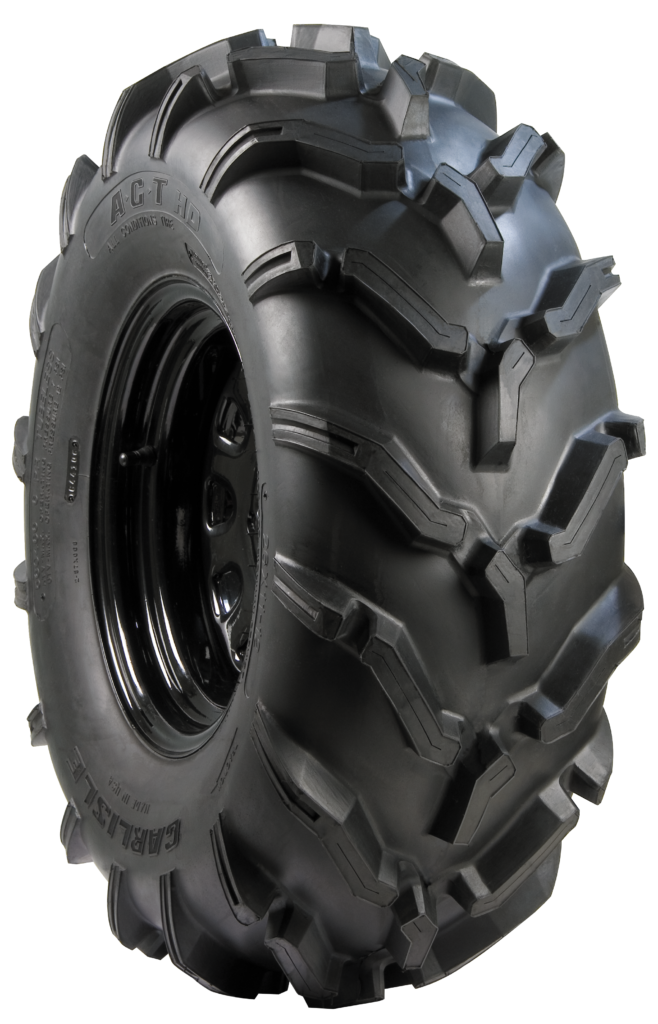

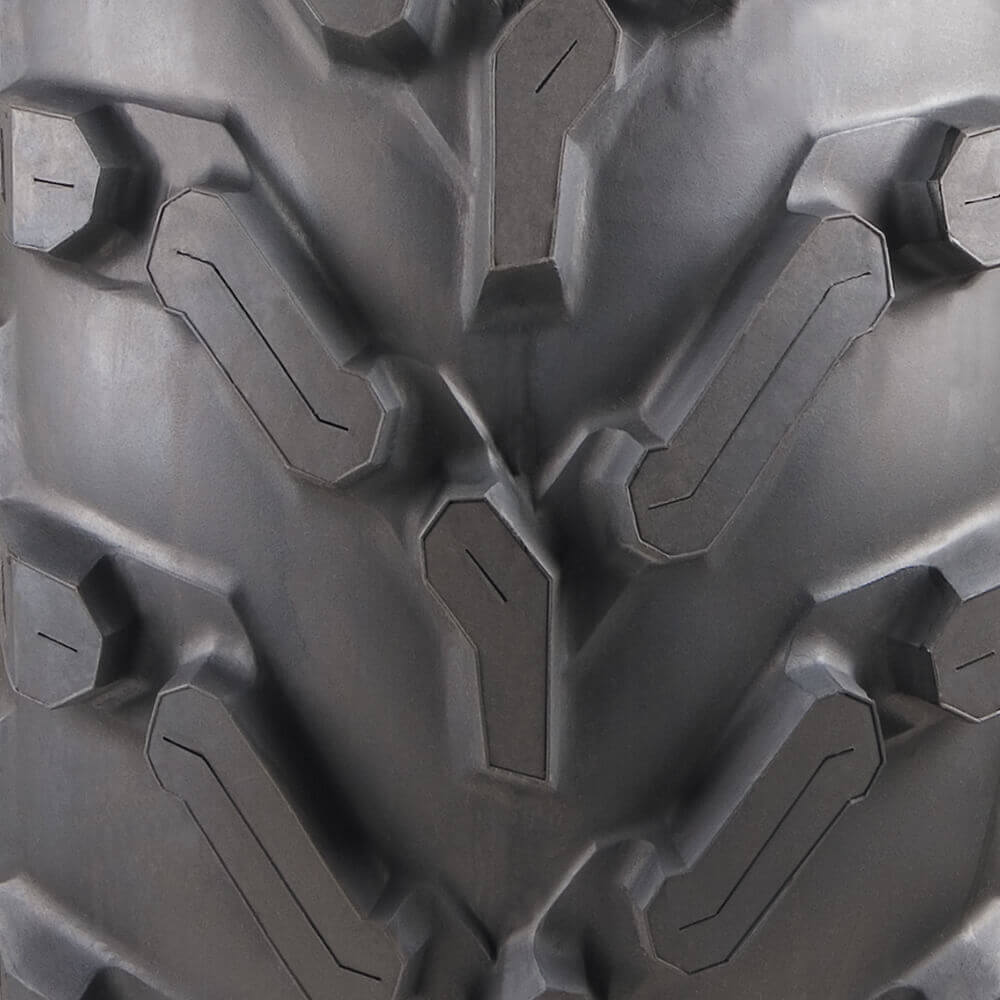

The A-C-T HD ATV tire combines enhanced carcass strength, stiffer sidewalls, self-cleaning tread design, and 6-ply rating to deliver outstanding performance in soft to intermediate surfaces, including mud. Whether you’re navigating challenging terrains or working in demanding off-road conditions, trust in the A-C-T HD tire to provide enhanced control, reliable traction, and durability. Made in the USA, this tire exemplifies Carlstar’s dedication to producing high-quality products.
Product Highlights:
| SKU | Size | Ply | Mounted diameter (in) | Mounted width (in) | Rim Width (in) | Rated load (lb) | Rated Speed (lb) | PSI | Tread Depth | Weight (lb) | Additional Information |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 560481 | 25X8.00R12 | 6 | 25.9 | 7.7 | 6.5 | 695 | 50 | 18 | 33 /32 | 21.2 | |
| 560482 | 25x11.00R12 | 6 | 25.8 | 10.5 | 9 | 935 | 50 | 18 | 33 /32 | 26.6 | |
| 560465 | 26x9.00R12NHS | 6 | 26.7 | 8.6 | 7 | 825 | 50 | 18 | 32 /32 | 25 | |
| 560466 | 26x11.00R12NHS | 6 | 27.2 | 10.5 | 9 | 965 | 50 | 18 | 32 /32 | 29.2 | |
| 560472 | 27x9.00R12NHS | 6 | 27.5 | 8.9 | 7 | 880 | 50 | 18 | 32 /32 | 25.6 | |
| 560473 | 27x11.00R12NHS | 6 | 27.5 | 10.6 | 9 | 1020 | 50 | 18 | 32 /32 | 31.1 |
| SKU | Size | Ply | Mounted diameter (mm) | Mounted width (mm) | Rated load (kg) | Rated speed | PSI | Tread Depth | Weight (kg) | Additional Information |
|---|---|---|---|---|---|---|---|---|---|---|
| 560481 | 25X8.00R12 | 6 | 657.9 | 195.6 | 80.5 | 18 | 33 /32 | 9.6 | ||
| 560482 | 25x11.00R12 | 6 | 655.3 | 266.7 | 80.5 | 18 | 33 /32 | 12.1 | ||
| 560465 | 26x9.00R12NHS | 6 | 678.2 | 218.4 | 80.5 | 18 | 32 /32 | 11.3 | ||
| 560466 | 26x11.00R12NHS | 6 | 690.9 | 266.7 | 80.5 | 18 | 32 /32 | 13.2 | ||
| 560472 | 27x9.00R12NHS | 6 | 698.5 | 227.1 | 80.5 | 18 | 32 /32 | 11.6 | ||
| 560473 | 27x11.00R12NHS | 6 | 698.5 | 269.2 | 80.5 | 18 | 32 /32 | 14.1 |
