Highway Eight Spoke Trailer Wheel

Boat | Cargo | Horse and Livestock | Recreational Vehicles (RV) | Specialty Trailer

Home Products High-Speed Trailer Highway Eight Spoke Trailer Wheel

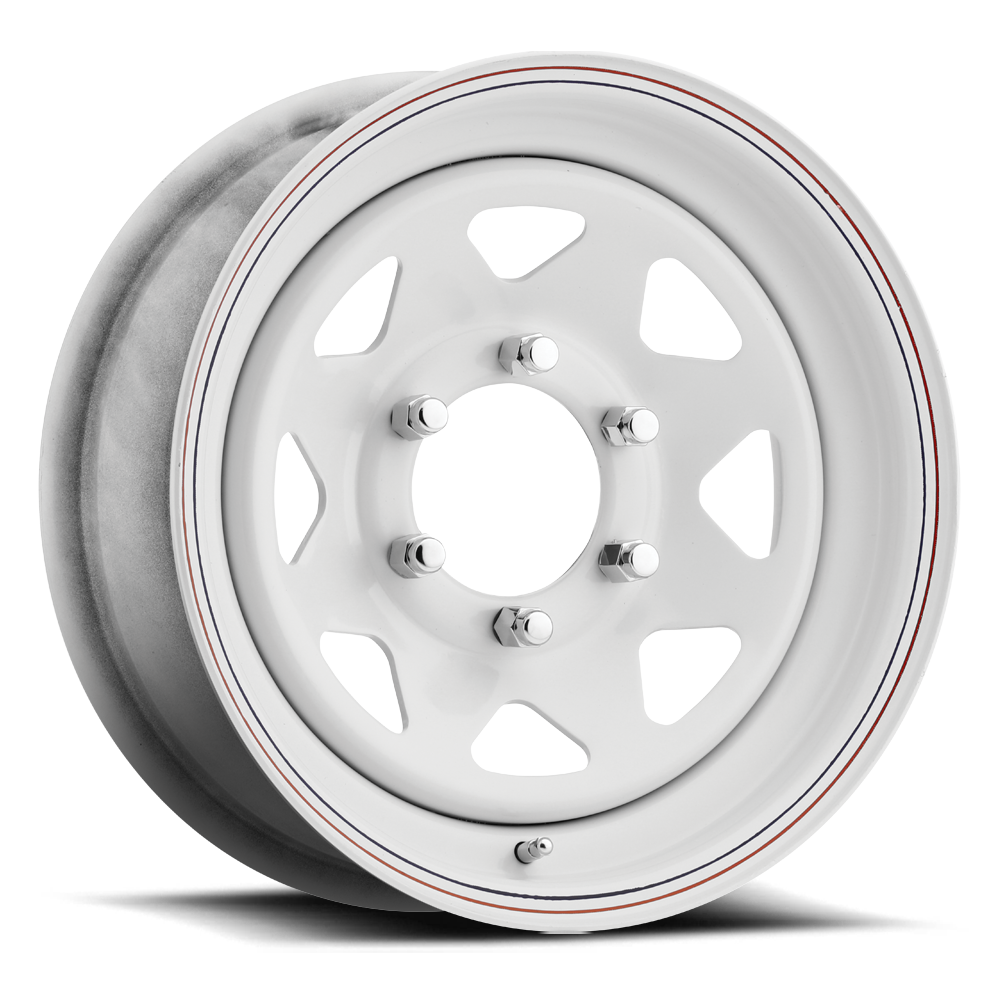

Carlisle Highway Eight Spoke White Angled View

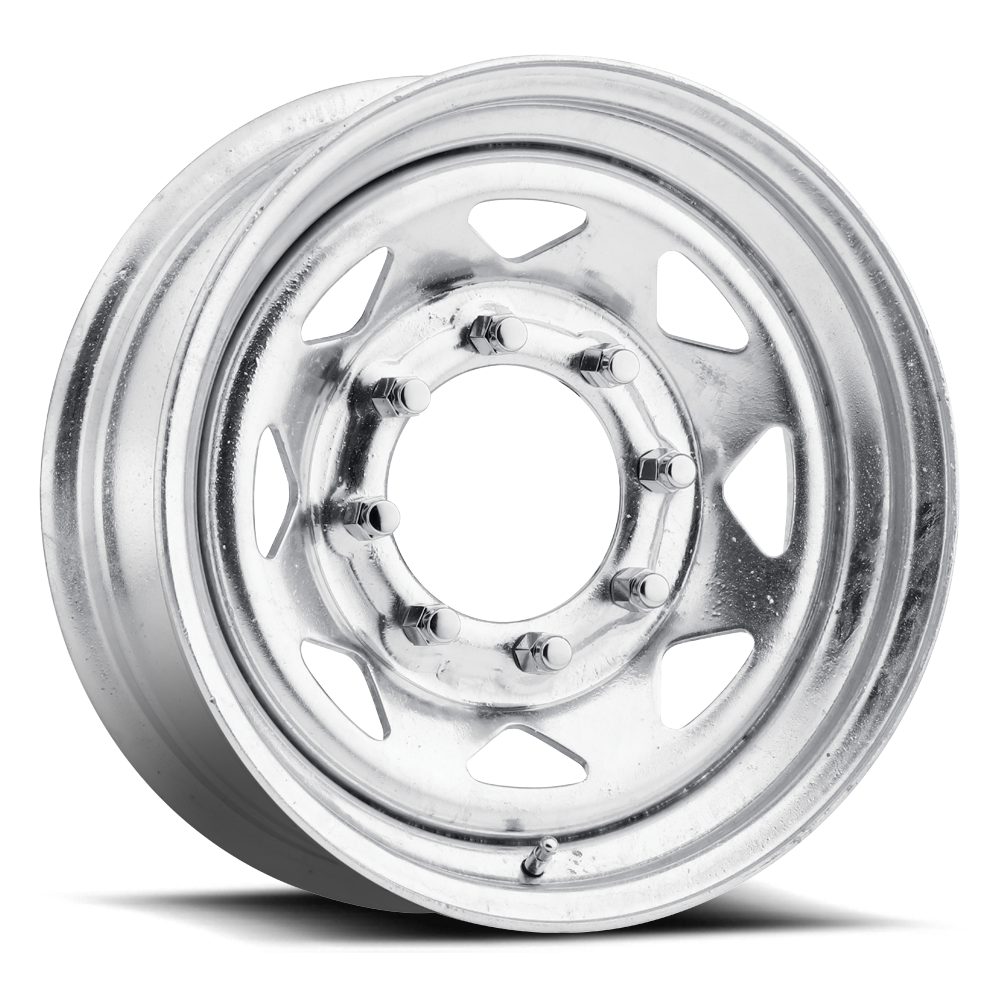

Carlisle Highway Eight Spoke Galvanized Angled View

Carlisle Highway Eight Spoke White Angled View

Carlisle Highway Eight Spoke Galvanized Angled View

Highway Eight Spoke Trailer Wheel

Best used for

Boat

Cargo

Horse and Livestock

Recreational Vehicles (RV)

Specialty Trailer

Boat Trailers, Cargo Trailers, Horse and Stock Trailers, RV-Towable Utility and Specialty Trailers

Technical Specifications

SKU	Size	Bolt Pattern	Offset	Rear Spacing (in)	Center Bore (in)	Rated load (lb)	Finish	Weight (lb)	Additional Information
1222418564B	12x4	4x4		2.3750	2.8430	1520	White w/ Red and Blue Strips	9.8
1222419564B	12x4	5x4.5		2.3750	2.8430	1520	White w/ Red and Blue Strips	10.3
1222683400B	12x4	4x4		2.4310	2.8430	1520	Galvanized	9.9
1222684400B	12x4	5x4.5		2.4310	2.8430	1520	Galvanized	9.8
1221442400B	12x4	5x4.5		2.3750	2.8000	1220	White w/ Red and Blue Strips	11
1318077400B	13x4.5	4x4		2.6250	2.7950	1660	White w/ Red and Blue Strips	14
1322420564B	13x4.5	5x4.5		2.5700	3.3070	1480	White w/ Red and Blue Strips	13.4
1321136400B	13x4.5	5x4.5		2.6250	3.3000	1480	White w/ Red and Blue Strips	15
1321136564B	13x4.5	5x4.5		2.6250	3.3000	1480	White w/ Red and Blue Strips	15
1321475564B	13x4.5	4x4.0		2.7500	2.8000	1660	White w/ Red and Blue Strips	15
1418411564B	14x5.5	5x4.5		3.1250	3.3000	1480	White w/ Red and Blue Strips	19
1418221564B	14x6	5x4.5		3.5000	3.3000	1870	White w/ Red and Blue Strips	19
1422675400B	14x6	5x4.5		3.5530	3.3070	2040	Galvanized	15.8
1422675564B	14x6	5x4.5		3.5530	3.3070	2040	White w/ Red and Blue Strips	15.8
1421137400B	14x6	5x4.5		3.5000	3.3000	1870	White w/ Red and Blue Strips	19
1421137564B	14x6	5x4.5		3.5000	3.3000	1870	White w/ Red and Blue Strips	19
1521158564B	15x5	5x4.5		2.8750	3.3000	2150	White w/ Red and Blue Strips	21
1522661564B	15x5	5x4.5		3.0510	3.1970	2150	White w/ Red and Blue Strips	17.4
1518669284B	15x6	6x5.5		3.5000	4.2800	2850	White w/ Red and Blue Strips	24
1522438284B	15x6	6x5.5		3.5000	4.2910	2830	White w/ Red and Blue Strips	22
1522438564B	15x6	6x5.5		3.5000	4.2910	2830	White w/ Red and Blue Strips	22
1521138400B	15x6	5x4.5		3.5000	3.3000	2150	White w/ Red and Blue Strips	23
1521138564B	15x6	5x4.5		3.5000	3.3000	2150	White w/ Red and Blue Strips	23
1521139400B	15x6	6x5.5		3.5000	4.2800	2600	White w/ Red and Blue Strips	22
1521139564B	15x6	6x5.5		3.5000	4.2800	2600	White w/ Red and Blue Strips	22
1521479564B	15x6	5x5.5		3.5000	4.2800	2150	White w/ Red and Blue Strips	22
1522659400B	15x6	5x4.5		3.5530	3.3070	2830	Galvanized	20.2
1522659564B	15x6	5x4.5		3.5530	3.3070	2830	White w/ Red and Blue Strips	20.2
1522179564B	15x6	5x5.0		3.5000	3.3000	2150	White w/ Red and Blue Strips	22
1522660400B	15x6	6x5.5		3.5530	4.2910	3080	Galvanized	18.8
1522182564B	15x6	5x4.75		3.5000	3.3000	2150	White w/ Red and Blue Strips	22
1522660564B	15x6	6x5.5		3.5530	4.2910	3080	White w/ Red and Blue Strips	18.8
1522662564B	15x6	5x5.5		3.5530	4.2910	2830	White w/ Red and Blue Strips	18.8
1522663564B	15x6	5x5		3.5530	3.3070	2830	White w/ Red and Blue Strips	18
1522664564B	15x6	5x4.75		3.5530	3.3070	2830	White w/ Red and Blue Strips	26.9
1618327400B	16x6	8x6.5		3.5000	5.1500	4080	White w/ Red and Blue Strips	28
1622431564B	16x6	6x5.5		3.5000	4.2830	3640	White w/ Red and Blue Strips	29
1622441284B	16x6	8x6.5		3.5000	5.1500	4080	White w/ Red and Blue Strips	32
1626895284B	16x6	8x6.5		8.6250	4.7500	3200	White w/ Red and Blue Strips	39
1622668564B	16x6	8x6.5		3.5530	4.9020	4480	White w/ Red and Blue Strips	30.3
1621112400B	16x6	8x6.5		3.5000	5.1500	4080	White w/ Red and Blue Strips	31
1621112564B	16x6	8x6.5		3.5000	5.1500	4080	White w/ Red and Blue Strips	31
1621113400B	16x6	6x5.5		3.5000	4.2800	3200	White w/ Red and Blue Strips	31
1621113564B	16x6	6x5.5		3.5000	4.2800	3200	White w/ Red and Blue Strips	31
1622668400B	16x6	8x6.5		3.5530	4.9020	4480	Galvanized	30.3
1622669400B	16x6	6x5.5		3.5530	4.2830	3750	Galvanized	26.8
1622669564B	16x6	6x5.5		3.5530	4.2830	3750	White	26.8
1627129564	16x7	8x6.5		4.0000	5.1500	3200	White w/ Red and Blue Strips	30

SKU	Size	Bolt Pattern	Offset	Rear Spacing (mm)	Center Bore (mm)	Rated load (kg)	Finish	Weight (kg)	Additional Information
1222418564B	12x4	4x4		60.3250	72.2122	690	White w/ Red and Blue Strips	4.4
1222419564B	12x4	5x4.5		60.3250	72.2122	690	White w/ Red and Blue Strips	4.7
1222683400B	12x4	4x4		61.7474	72.2122	690	Galvanized	4.5
1222684400B	12x4	5x4.5		61.7474	72.2122	690	Galvanized	4.5
1221442400B	12x4	5x4.5				554	White w/ Red and Blue Strips	5
1318077400B	13x4.5	4x4				753.6	White w/ Red and Blue Strips	7
1322420564B	13x4.5	5x4.5		65.2780	83.9978	671.8	White w/ Red and Blue Strips	6.1
1321136400B	13x4.5	5x4.5				672	White w/ Red and Blue Strips	7
1321136564B	13x4.5	5x4.5				672	White w/ Red and Blue Strips	7
1321475564B	13x4.5	4x4.0				753	White w/ Red and Blue Strips	7
1418411564B	14x5.5	5x4.5				672	White w/ Red and Blue Strips	9
1418221564B	14x6	5x4.5				848	White w/ Red and Blue Strips	9
1422675400B	14x6	5x4.5		90.2462	83.9978	926.1	Galvanized	7.2
1422675564B	14x6	5x4.5		90.2462	83.9978	926.1	White w/ Red and Blue Strips	7.2
1421137400B	14x6	5x4.5				849	White w/ Red and Blue Strips	9
1421137564B	14x6	5x4.5				849	White w/ Red and Blue Strips	9
1521158564B	15x5	5x4.5				976	White w/ Red and Blue Strips	10
1522661564B	15x5	5x4.5		77.4954	81.2038	976	White w/ Red and Blue Strips	7.9
1518669284B	15x6	6x5.5				1293	White w/ Red and Blue Strips	11
1522438284B	15x6	6x5.5				1283	White w/ Red and Blue Strips	10
1522438564B	15x6	6x5.5				1284.7	White w/ Red and Blue Strips	10
1521138400B	15x6	5x4.5				976	White w/ Red and Blue Strips	11
1521138564B	15x6	5x4.5				976	White w/ Red and Blue Strips	11
1521139400B	15x6	6x5.5				1180	White w/ Red and Blue Strips	10
1521139564B	15x6	6x5.5				1180	White w/ Red and Blue Strips	10
1521479564B	15x6	5x5.5				976	White w/ Red and Blue Strips	10
1522659400B	15x6	5x4.5		90.2462	83.9978	1284.7	Galvanized	9.2
1522659564B	15x6	5x4.5		90.2462	83.9978	1284.7	White w/ Red and Blue Strips	9.2
1522179564B	15x6	5x5.0				976	White w/ Red and Blue Strips	10
1522660400B	15x6	6x5.5		90.2462	108.9914	1398.2	Galvanized	8.5
1522182564B	15x6	5x4.75				976	White w/ Red and Blue Strips	10
1522660564B	15x6	6x5.5		90.2462	108.9914	1398.2	White w/ Red and Blue Strips	8.5
1522662564B	15x6	5x5.5		90.2462	108.9914	1284.7	White w/ Red and Blue Strips	8.5
1522663564B	15x6	5x5		90.2462	83.9978	1284.7	White w/ Red and Blue Strips	8.2
1522664564B	15x6	5x4.75		90.2462	83.9978	1284.7	White w/ Red and Blue Strips	12.2
1618327400B	16x6	8x6.5				1852.1	White w/ Red and Blue Strips	13
1622431564B	16x6	6x5.5				1651	White w/ Red and Blue Strips	13
1622441284B	16x6	8x6.5				1850	White w/ Red and Blue Strips	15
1626895284B	16x6	8x6.5				1452.6	White w/ Red and Blue Strips	18
1622668564B	16x6	8x6.5		90.2462	124.5108	2033.7	White w/ Red and Blue Strips	13.8
1621112400B	16x6	8x6.5				1851	White w/ Red and Blue Strips	14
1621112564B	16x6	8x6.5				1851	White w/ Red and Blue Strips	14
1621113400B	16x6	6x5.5				1452	White w/ Red and Blue Strips	14
1621113564B	16x6	6x5.5				1452	White w/ Red and Blue Strips	14
1622668400B	16x6	8x6.5		90.2462	124.5108	2033.7	Galvanized	13.8
1622669400B	16x6	6x5.5		90.2462	108.7882	1702.3	Galvanized	12.2
1622669564B	16x6	6x5.5		90.2462	108.7882	1702.3	White	12.2
1627129564	16x7	8x6.5				1452	White w/ Red and Blue Strips	14
